Product Description
1.Simple on-site processing.
2.Accommodating PV cable with different insulation diameters.
3.Mating safety provided by keyed housings.
4.Multiple plugging and unplugging cycles.
5.High current carrying capacity.
1.Simple on-site processing.
2.Accommodating PV cable with different insulation diameters.
3.Mating safety provided by keyed housings.
4.Multiple plugging and unplugging cycles.
5.High current carrying capacity.
6.Protection class IP67 suitable for outdoor harsh environments
|

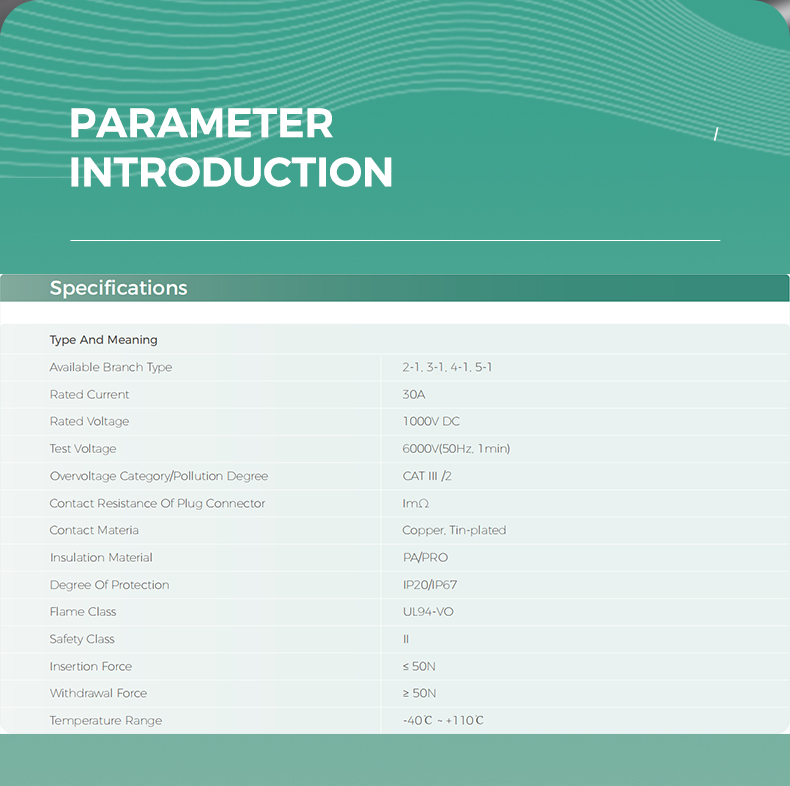

TYPE
|
FMC4-Y
|
|
Product name
|

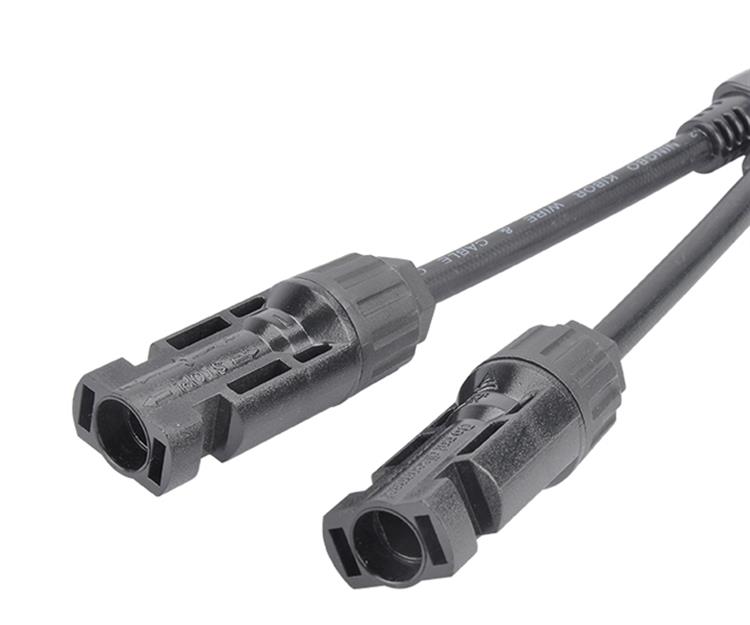

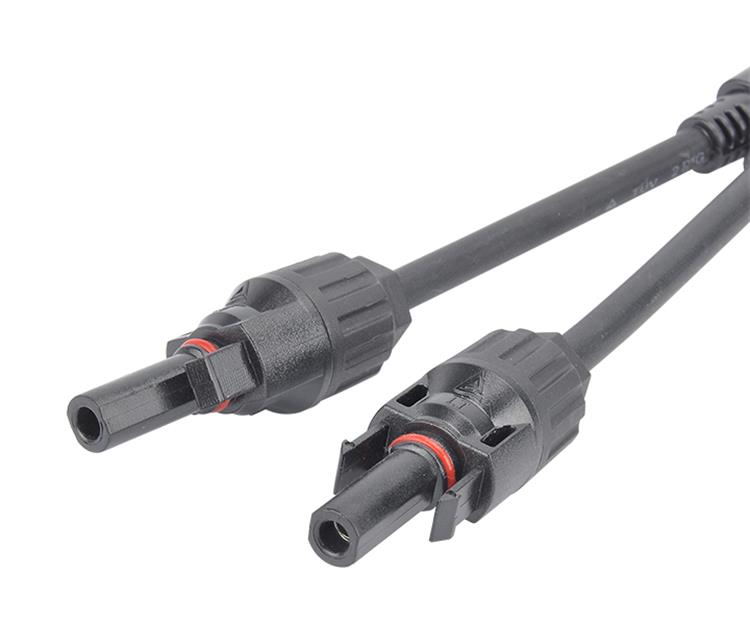

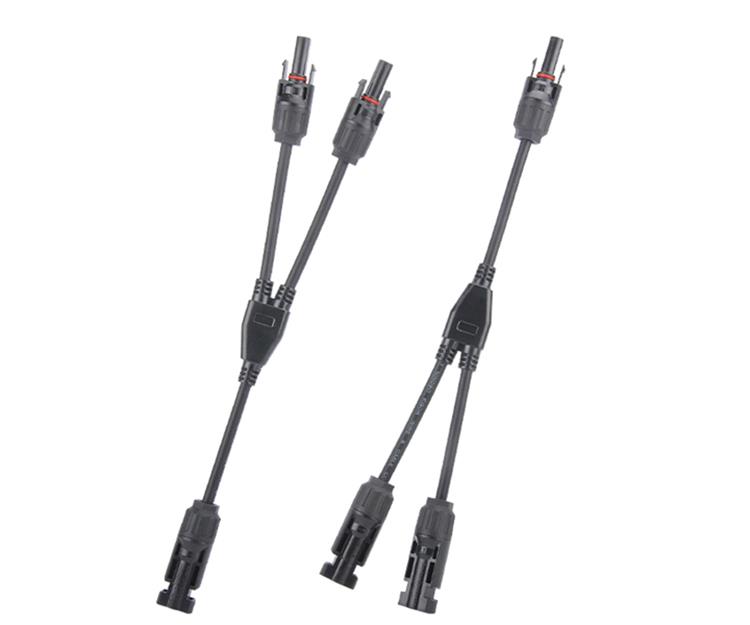

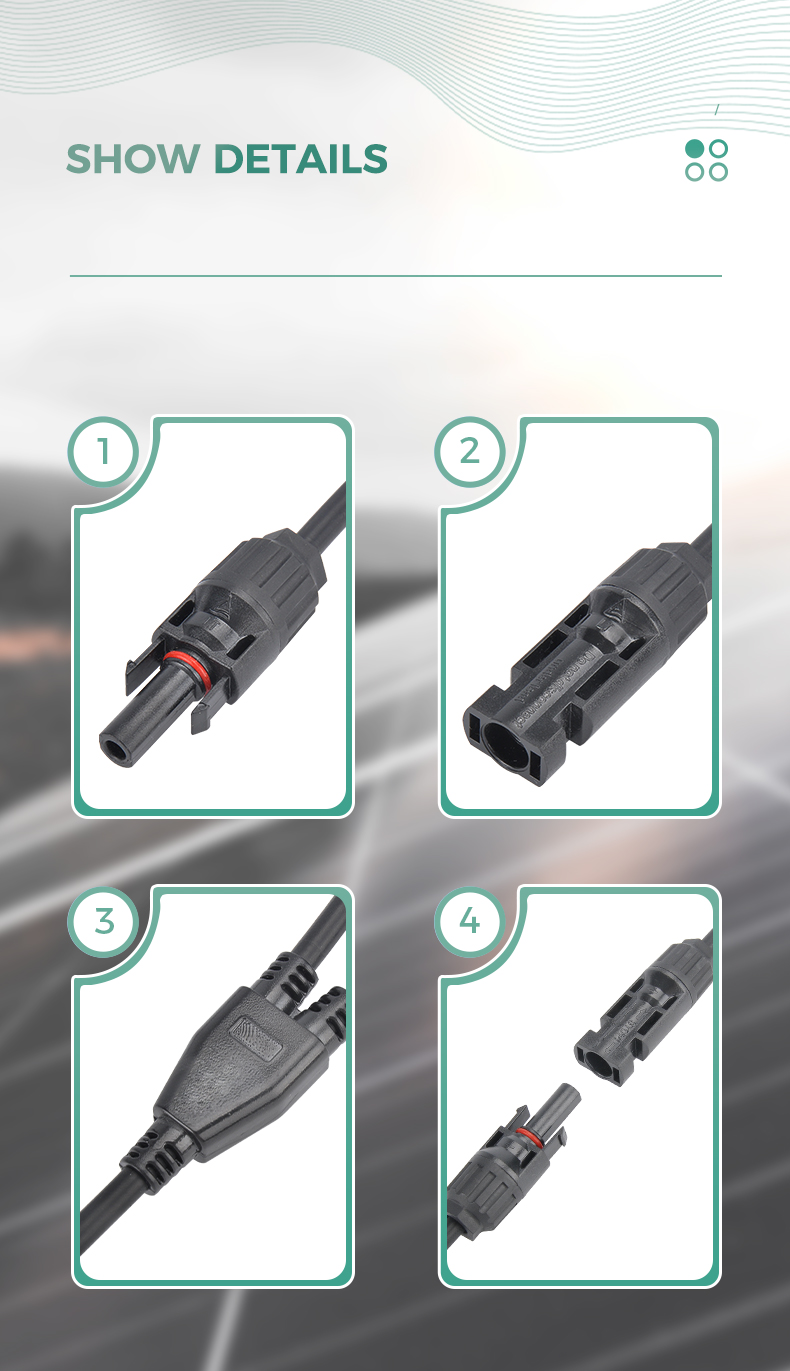

Solar Branch Connector
|
|
Rated current
|
30A(4-6mm2)
|
|
Rated Voltage
|
1000VDC
|
|
Test Voltage
|
6000V(50Hz, 1min)
|
|
Overvoltage Type/Pollution Degree
|
CAT III /2
|
|
Contact Resistance Of Plug Connector
|
ImΩ
|
|
Contact Materia
|
Copper, Tin-plated
|
|
Insulation Material
|
PA/PRO
|
|
Degree Of Protection
|
IP20/IP67
|
|
Suitable Cable
|
-
|
|
Connecting System
|
-
|
|
Temperature Range
|
-40℃~+110℃
|
|
Certificate
|
IEC/TUV/CE
|
|
Application
|
PV Solar System
|
|
Warranty
|
2 Years
|
|
Mounting
|
cable mounting
|
