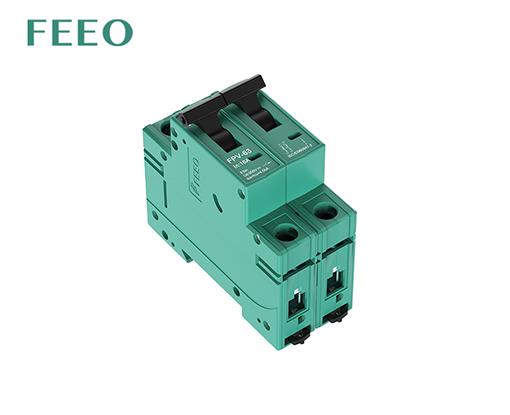

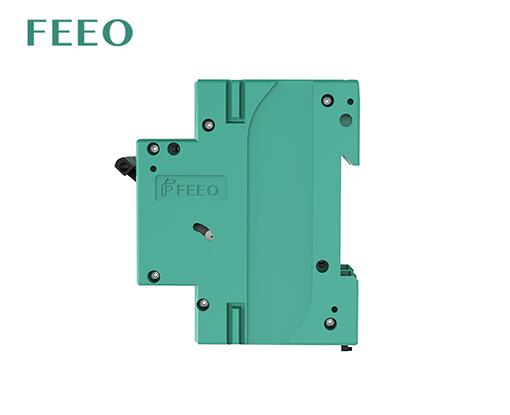

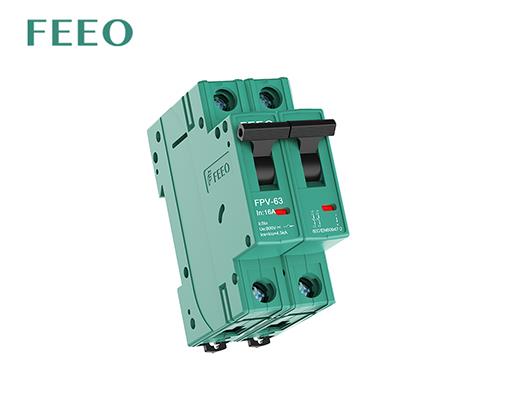

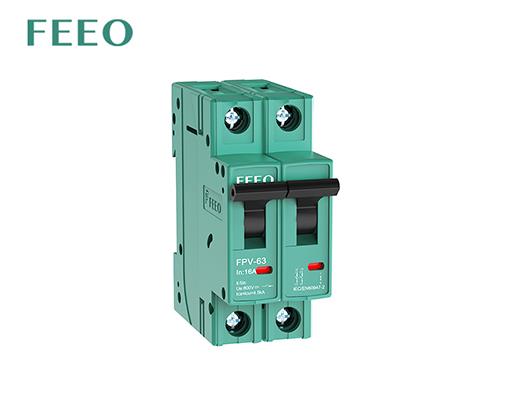

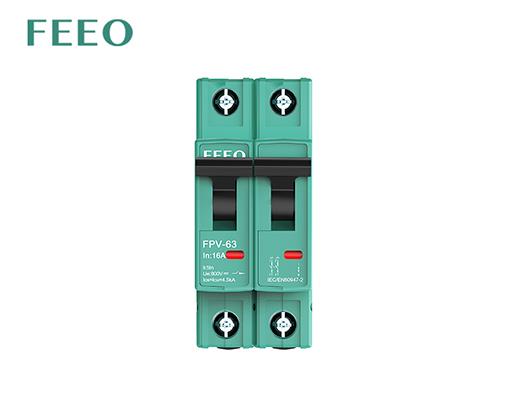

FPV-63-2P 550V 10KA PV Solar DC MCB

Product Type:DC MCB (Mini Circuit Breaker)
Rated Current:3,6,10,16,20,25,32,40,50,63A
Short-circuit breaking capacity:10KA
Pole Configuration:1P, 2P, 3P, 4P
Characteristic Curve: B,C,D
Application:PV Solar System
Warranty:2 Years
Mounting:Din rail

Yueqing Feeo Electric Co.,Ltd is one of the professional China 1p dc mcb circuit breaker manufacturers and suppliers, if you are going to check the price with one 2p dc mcb, 2p dc circuit breaker, 63a dc circuit breaker, 2p dc breaker, 550v dc mcb factory in China, please feel free to contact us.

Product Description

Solar 2P DC MCB supplementary protectors are designed to provide overcurrent protection within appliances or electrical equipment, where a branch circuit protection is already protection or not required. Devices are designed for direct current (DC) control circuit applications.

Product Feature

1.Thermoplastic shell, full inlet, impact resistant, recyclable, self extinguishing

2.Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable

3.The original air flow, can effectively reduce the temperature between adjacent circuit breaker

4.Safety handle, classic original design, ergonomic

Product Type DC MCB (Mini Circuit Breaker)
Rated Current 3A,6A,10A,16A,20A,25A,32A,40A,50A,63A
Rated Voltage 250VDC-1500VDC
Short-circuit breaking capacity 10KA
Pole Configuration 1P, 2P, 3P, 4P
Characteristic Curve B,C,D
Application PV Solar System
Warranty 2 Years
Mounting Din rail


If you have any enquiry about quotation or cooperation,please feel free to email us at or use the following enquiry form. Our sales will contact you within 24 hours. Thank you for your interest in our products.
